To South America Beiben2527 beiben aircaft fueler jet refuelling vechicle

$98000.0000 1 - 4 $96000.0000 5 - 9 $92000.0000 >=10
FOB Price:	US $92,000 - 98,000 / Set
Min.Order Quantity:	1 Set/Sets
Payment Terms:	T/T,Western Union

Contact Supplier

Loading...

Product Detail

Quick Details

Condition: New
Storage: jet oil, diesel, gasoline, kerosene, etc.
Drive Wheel: 6x4
Horsepower: 251 - 350hp
Transmission Type: Manual
Fuel Type: Diesel
Tank Volume: 15001 - 30000L
Engine Capacity: 9.726L
Dimensions (L x W x H) (mm): 9580 * 2500 * 3400 mm
Brand Name: TIC
Place of Origin: Hubei, China
Model Number: 2527
Gross Vehicle Weight: 25000
Color: White
Tire Spec: 12.00R20 radial tire

Packaging & Delivery

Packaging Details	By containers truck by Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free. Usually we will put the truck in cabin of the ship.
Port	Shanghai

To South America Beiben 2527 beiben aircaft fueler jet refuelling vechicle

Customization, Cost Control Built How You Want it, at a Price You Can Afford. for sale

call:+86-152 -7135-7675

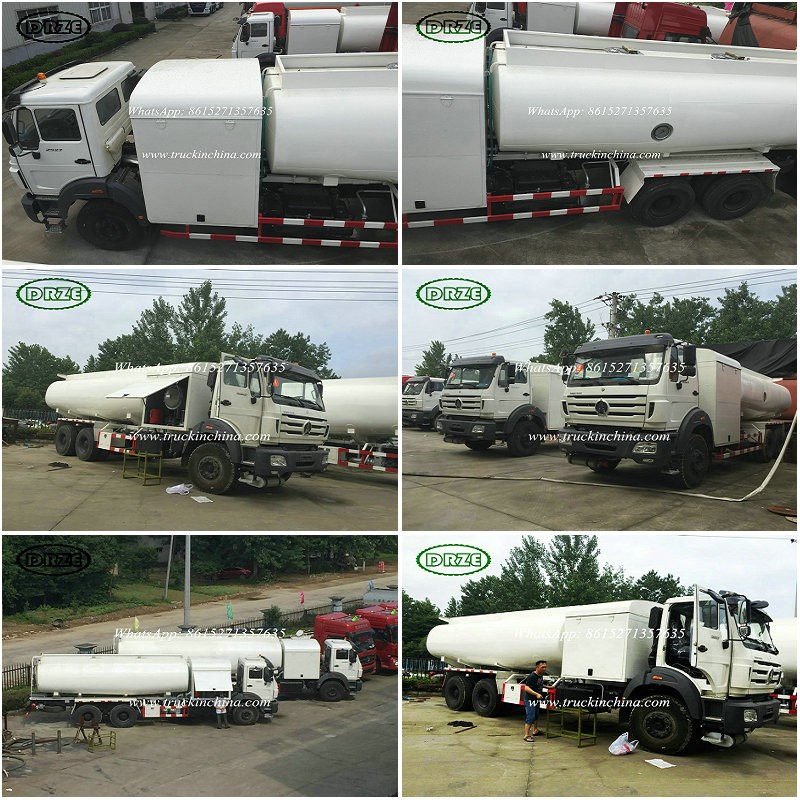

beiben airport refuel tanker trucks

Beiben jet refuelling vechicle Aviation Refuellers

Model Number 2527 /2529/2530/2534/2538

Drive Wheel 6x4/6x6

Volume 10/14/15 /16/18/20CBM

Storage Water /fuel,oil,jet oil

Color White

Wheel base (mm) 5050+1450

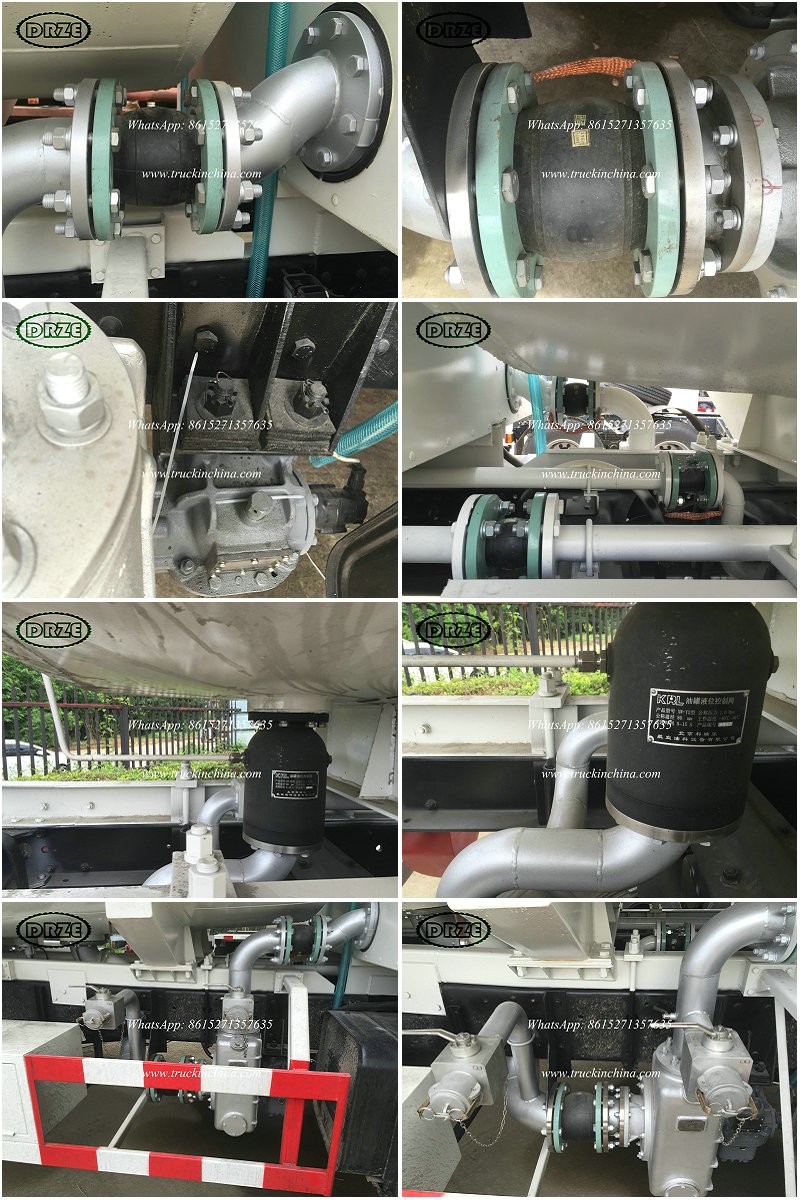

beiben airport refuel tanker miters and pipes

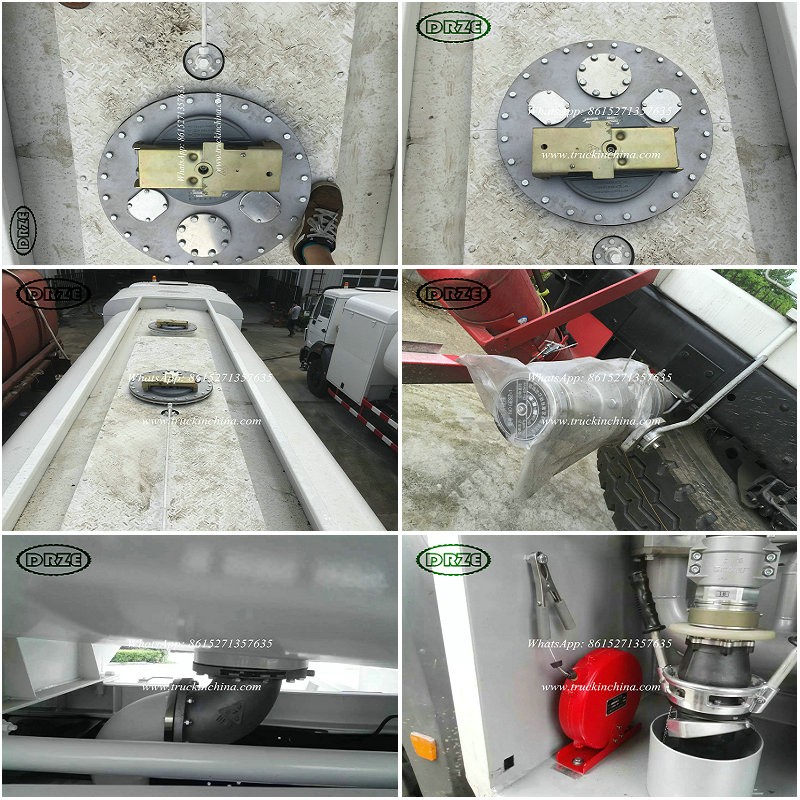

beiben airport refuel tanker mangole cover and dishcharge outlet

beiben airport refuel tanker pipe conector

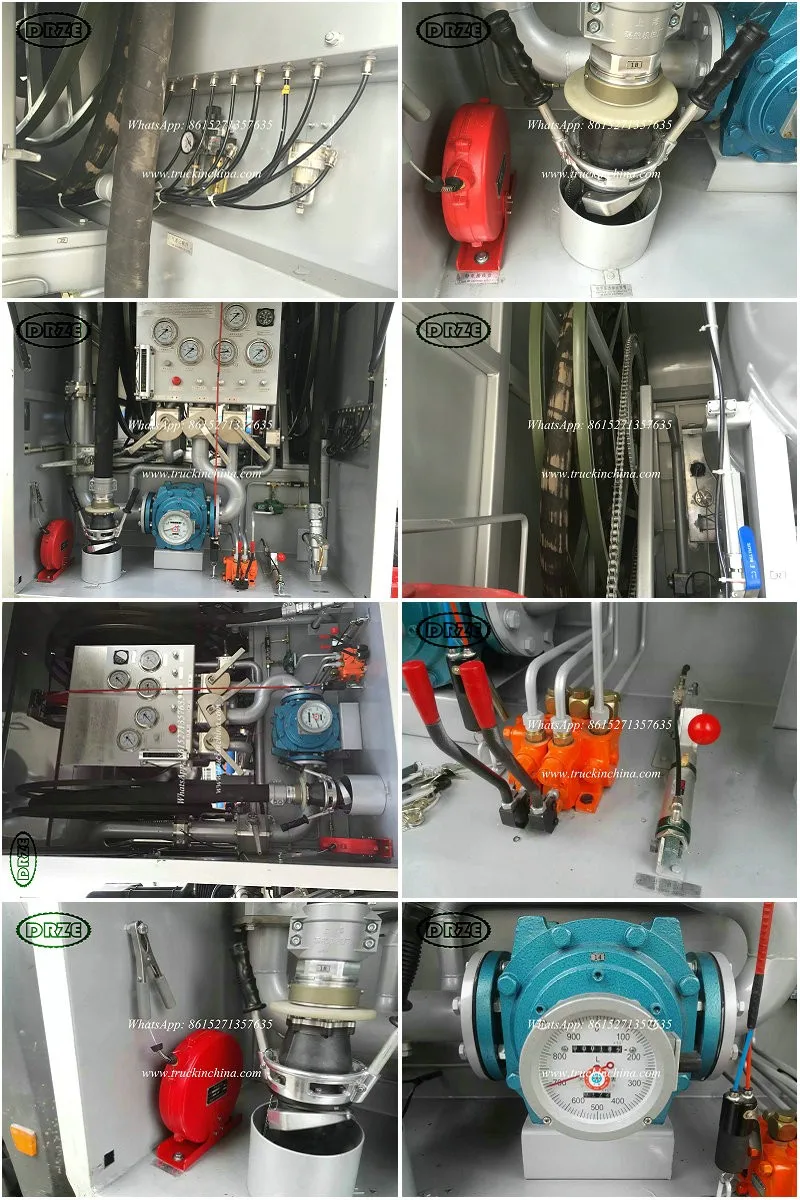

beiben jet refuelling vechicle Aviation Refuellers pump

beiben jet refuelling vechicle Aviation Refuellers Fuel filter separator

Tank Equipments (all API Standard)

Features:

----Beiben chassis, perfect performance.

---- Weichai engine(Chinese top brand), super powerful; reliable performance, no overhaul within 100,000 km.

---- Nice shape, rational structure.

---- Fuel pump super powerful, highly efficient, with pump in pump out function.

---- Massive, durable, long service life.
Similar Key Words: off road fuel transport truck, 6X6 petrol tanker, refueling tank truck, aviation refueling vehicle, aluminum fuel tanker,Aircraft Refueller Truck, Jet Refuelling Truck,

Clutch	Model	GFX420, Single dry frictional disc,Hydraulic boosting
Gearbox	Model	mechanism, 9 forward gears, 1 reverse gear, manual, made in China, produed by Bei Ben Transmission)
Transfer-case	VG1400( technical,made by BEIBEN AXLE)
Brake system	Service brake	Brake gap can be adjusted automatically, double circulation air brake system
	Assistant brake	Engine exhaust brake
	Park brake	Potential springs pressing on middle and rear wheels
Steering system	Model	ZF8098
Frame of vehicle	Fish belly shape, variable width, variable section side beam structure
Front axle ( Technology)	Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle ( Technology)	Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Tyre	12.00R20
Electrical system	Battery	2X12V/135Ah
	Generator	28V -35A
	Starter	5.4Kw/24V
Cab	Short cab, made by full steel material, anticrash performance can be ensured by double hollow chamber structure. Inner A/C

Off-raod Fuel Tank Truck (6X6 drive / 18,000 Litres)
General	Vehicle Brand	TIC
	Chassis Brand	Beiben
	Overall Dimension	9580 * 2500 * 3400 mm
	GVW / Kerb Weight	25,000 kg / 12,400 kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	Air conditioner is equipped
Engine	Fuel Type	Diesel
	Engine Brand	Weichai engine(Chinese top brand)
	Power	336 Ps (247 KW)
	Displacement	9726 ml
	Emission Standard	Euro III
Chassis	Drive Type	6X6, left hand drive
	Transmission	9-speed front, 1 reverse
	Wheelbase/No. of axle	4450+1450 mm / 3
	Tyre Specification	12.00-20
	Tyre Number	10 tyres and 1 spare tyre
	Max Speed	85 km/h
	Paint	Metallic paint
Superstructure	Tank Capacity	18,000 Litres ( About 4,700 gallons )
	Tank Material	Carbon steel
	Pump	Equipped for overhead delivery, 1000 litres / min
	Suction Head	6 m
	Hose	High quality, wire strengthened hose, with cooper wire, anti-static
	All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers……..
Optional	Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)…… It can be divided into many compartments. Devices can be equipped: fuel counter (flow gauge), fuel dispenser, hose reel, level gauge…… Heat preservation & heating system could be added. ** Bottom loading system can be equipped.

Off-road fuel bowser(also called fuel tanker truck, mobile fuel tank truck, crude oil tanker, diesel tank truck, petroleum tanker, fuel refueler truck, truck aircraft refueling, mobile tank lorry) is used to transport oil, diesel, gasoline, kerosene, etc.
