Dimension (mm×mm×mm)

11986×2500×3600

Wheel base (mm)

1500+4750+1450

Curb weight (kg)

14500

Max Speed:(Km/h)

≥80

Front overhang/rear overhang

1410/1720

Engine

Model

WD615.50,water-cooled,four strokes,6 cylinders straight in line,turbocharged,

Fuel type

Diesel

Min rate of consuming fuel(g/(kW.h))

206g/Kw.h

Rated Power / rotating

(KW/(r/min)

206Kw/2200rpm

Emission

EUROⅡ

Maximum Torque / rotating speed(N.m/(r/min))

1160Nm/1100-1600rpm

Displacement(ml)

9726

Fuel tanker capacity (L)

400

Clutch

Model

GFX420, Single dry frictional disc,Hydraulic boosting

Gearbox

Model

5S-112GP mechanical type,Based on ZF German technology ,9Forward speed gear.

Gear ratio of speed

8.48/6.04/4.39/3.43/2.47/1.76/1.28/1.00

Crawler:13.04 Reverse:11.77

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

ZF8098, whole circulation in ball type, hydraulic boosting

Suspension system

Rear Suspension

Non-free standing stabilization spring, stabilization suspension, 13pcs

Frame

Fish belly shape, variable width, variable sections

Front axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tire

12.00R20 radial tire

Qty of tire

13

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Long cab with sleeper,

Full steel skeleton structure, covered with double layer steel plate;

Can be tipped forwardly;

With Tropical thermostat(71C)

Interior trimming:

Integral interior trimming, Integral instrument, digital instrument, inner A/C, radio (with USB interface), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted.

Exterior trimming:

Metal bumper, two steps, new mirror.

Specification of the Upper body(Wrecker)

towing equipment

30DZ+16T( 2stage boom )

Under

lift

Max lift @all extend(kg)

7200

Max lifting (kg)

16000

Length of arm (mm)

1375~3014

In/out length (mm)

1639

Title angle (0)

-10

Moving angel(0)

-10~93

Boom system

Max lifting (kg)

30000

Lifting at all extend (kg)

5000

Length of 1st stage boom (mm)

5280

Total length of boom(mm)

8380

High of lifting (mm)

8680

move angle (0)

0~50

rotator (0)

360°

Winch

Qty

2

diameter of cable(mm)

φ18

Length of cable (m)

45×2

Sport legs

Front legs span (mm)

5110

Rear legs span (mm)

4000

Front to rear (mm)

7065

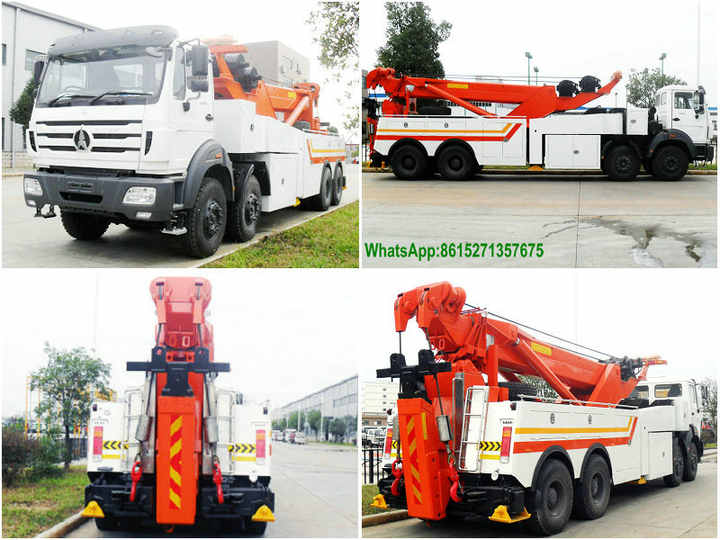

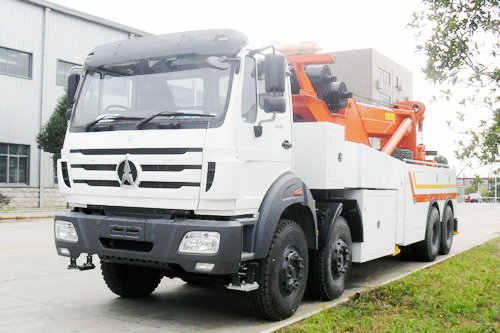

Product Name

newest road towing wrecker truck

Cab

 Single sleeper cab, two doors, rated passengers 2 or 3

Chassis

Brand

beiben

Chassis model

ND13104D

Drive type

8*4

Tire

12.00R20 with 1 spare tire

Tire No.

12+1(spare)

Braking System

air brake

Transmission

Manual , 9 forward and 1 reverse

Engine

Model

WP12.375E40

Horse Power(kw/hp)

276kw/375hp

Fuel type

diesel

Displacement(ml)

11596ml

Emission standard

Euro 4/3/2

Dimension & weight

Overall dimension (L*W*H/mm)

11450x2500x3500mm

Axles No.

4

Curb Weight(kg)

29370

Max speed(km/h)

90

performance parameter

Type

 Wrecker with 360 °rotation hexagonal arm

Standard configuration

two 15 ton hydraulic winch with 30m long steel wire rope, Two section hexagonal arm( 360° continuous rotate), three section corbel, split compartments, bilateral linkage operation device, five pairs forks, one pair of fork cover, one set auxiliary brake pipe assembly, warming lamp, etc

Performance data

towing: 60ton,lifting: 40ton

Option

According to the customer’ request

Parameters

Overall dimension length/width/height (mm)

9300x2500x3500

Total Mass(kg)

25000

Payload Mass(kg)

Kerb Mass(kg)

19870

Approach angle/ Departure angle(mm)

25/28

Front suspension/rear suspension(mm)

1410/1990

Fuel Type

diesel

Max Speed

85

Engine

Type

 WP10.375

Displacement/Power(kw)

 9726 /276

Chassis

Drive type

6x4

Wheelbase(mm)

4450+1450

Tread(front/rear)

1995  1800/1800

Cab

3person

Number of spring axle(front/rear)

13/13

Tire Type

12.00-20,12.00R20,11.00-20,11.00R20

Air-condition

Choose to fix
