Quick Details

  • Place of Origin: Hubei, China
  • Brand Name: King Run
  • Model Number: 5160GXWD5
  • Transmission Type: Manual
  • Condition: New
  • Horsepower: 210hp
  • Emission Standard: Euro 4
  • Fuel Type: Diesel
  • Tank Volume: 11000L
  • Dimension (L x W x H): 8700x2495x3550
  • Gross Vehicle Weight: 18000
  • Color: White optional
  • Chassis: DFL1160BX5

Packaging & Delivery

Packaging Details By containers
truck by Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck,
we will spray antirust paint with free. Usually we will put the truck in cabin of the ship.
Port Shanghai

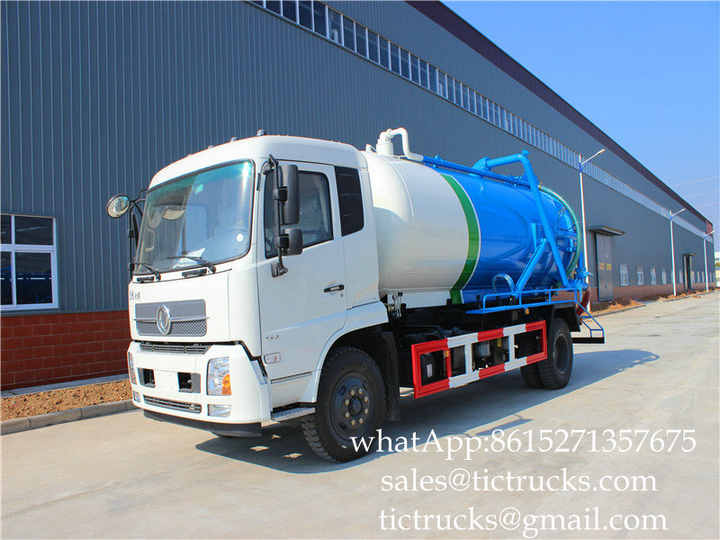

King Run vacuum tanker truck septik tank truck  11000L  vacuum tanker



Customization, Cost Control Built How You Want it, at a Price You Can Afford. for sale



call:+86-152 -7135-7675

 King ruan vacuum truck 10m3 -02-SEPTIC, SEWER TRUCKS, VACUUM.jpgKing ruan vacuum truck 10m3 -01-SEPTIC, SEWER TRUCKS, VACUUM.jpgKing ruan vacuum truck 10m3 -05-SEPTIC, SEWER TRUCKS, VACUUM.jpgKing ruan vacuum truck 10m3 -06-SEPTIC, SEWER TRUCKS, VACUUM.jpgKing ruan vacuum truck 10m3 -08-SEPTIC, SEWER TRUCKS, VACUUM.jpg

vacuum tanker

Drive form

4*2

Chassis model

DFL1160BX5

Overall dimension(mm)

8600*2500*3350

Tank dimension(mm)

6100*2350*1950

G.V.W(kg)

16000

Load capacity(kg)

8550

Curb weight(kg)

7255

Axle load(kg)

6000/10000

F/R overhang(mm)

1430/2470

Approach/Departure angle(°)

17/12

Tread(mm)

1880/1860

Wheelbase(mm)

5000

Spring plate

8/10+8

Tyre size & quantity

10.00R20 & 6+1

Cab

One and half row

Engine Description

Engine model

ISDe210 40

Displacement(ml)

6700

Max. power(kw)

155

Horsepower(hp)

210

Max. speed(km/h)

90

Type of fuel

Diesel

Emission standard

EURO 4

ABS system

3631010-C2000,446004644

Protective device section size(mm)

40*120

Ground clearance(mm)

390



Top of the vehicle are closed. Optional without a side door, install the front disc brake.



Cab front spoiler cover for the optional parts. Optional front fog lamps, optional sleeping side window decorating plate, the optional silencer front, optional disc brakes, engine options speed limiter, the speed limit of 80 km/h.



ISUZU Vacuum tanker Truck -380.jpg

Customize  Truck

Cell:  0086 152 7 135 7635   ; 0086 152 7 135 7675
WhatsApp: 8615271357675    tictrucks#gmail.com




sewer cleaning trucks

sewerage jetting tank Truck -10-sewerage jetting tanker.jpg

Application:


      Dredging and cleaning of sewer pipeline and gutter.
      Cleaning of buiding outerwall.
      Other cleaning work.
      Street flushing, chemical and water-spraying
      Bring underground cables and pipes to the surface



Technical Parameter:

Model

5162GQX

Dimension(L×W×H)mm

9050×2500×3800

Chassis

DAF DFL1160BX5

Engine

155kw

Full Load Weight

16000kg

Max Driving Speed

90km/h

Jetting System

Pump Max Flow

195 L/min

Pump Max Pressure

20MPa

Cleaning Tank

3m3

Hose Dia

DN 25

Vacumming System

Vacumm Pump Max Flow

1400 L/min

Effective Suction Increase

8-9m

Sewage Tank

5m3

Suction Hose Dia

125mm
