Quick Details

  • OEM No.: SDQ
  • Size: STD
  • Material: Steel, steel
  • Model Number: SDQ
  • Place of Origin: Hubei, China
  • Brand Name: SDQ
  • Truck Model: foton
  • weight: 20-30kg
  • Cell whatapp: 008615271357675

Packaging & Delivery

Packaging Details Suit package for By DHL,UPS, EMS ,TNT,Air flight..
By containers
truck by Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck,
we will spray antirust paint with free. Usually we will put the truck in cabin of the ship.
Port Shanghai or door to door

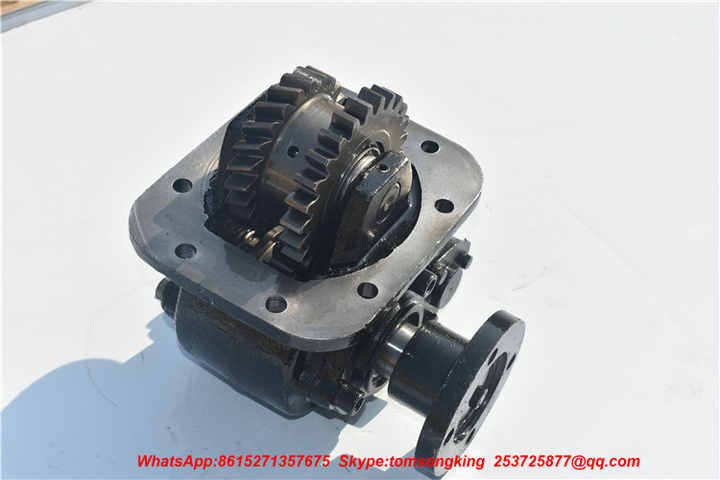

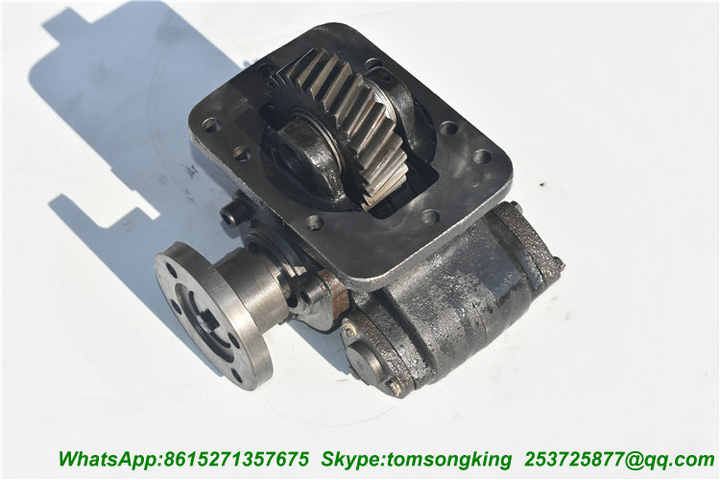

PTO Gearbox For FOTON  / FAW  DFAC Truck



 PTO GEARBOX SDQ27-21 NO. : SDQ27-21

POWER (CAR) THE MAIN TECHNICAL PARAMETERS: THE CURRENT MODELS: SDQ27/21 PQ1, MANIPULATION METHODS: PNEUMATIC, OUTPUT SHAFT ROTATE TO: RELATED TO THE ENGINE CYCLE, ON THE OTHER HAND, THE POWER  PTO GEARBOX  TOTAL RATIO: 1.845, APPLICABLE MODELS: EQ1208G, OUTPUT TORQUE (N.M) : 350, WITH THE GEARBOX: 17 GOA3 DC85JTZ G0Z56 17-010-17 G0010 (33.35.36) - 14 G0A3 N9002 - DC6J85TZ (32, 34)

PTO GEARBOX SDQ52-77 NO. : SDQ52-77

POWER (CAR) THE MAIN TECHNICAL PARAMETERS: THE CURRENT MODELS: SDQ52/77 PQ1, MANIPULATION METHODS: PNEUMATIC, OUTPUT SHAFT ROTATE TO: RELATED TO THE ENGINE CYCLE, ON THE OTHER HAND, THE POWER  PTO GEARBOX  TOTAL RATIO: 1.18, APPLICABLE MODELS: ISUZU 700 P, OUTPUT TORQUE (N.M) : 400, WITH THE GEARBOX: MRB6Q MLD6Q

PTO GEARBOX SDQ52-74 NO. : SDQ52-74

POWER (CAR) THE MAIN TECHNICAL PARAMETERS: THE CURRENT MODELS: SDQ52/74 PQ1, MANIPULATION METHODS: PNEUMATIC, OUTPUT SHAFT ROTATE TO: RELATED TO THE ENGINE CYCLE, ON THE OTHER HAND, THE POWER  PTO GEARBOX  TOTAL RATIO: 1.16, APPLICABLE MODELS: QY4202, OUTPUT TORQUE (N.M) : 350, WITH THE GEARBOX: MRB6 (P)

PTO GEARBOX SDQ51-74 (MANUAL) NO. : SDQ51-74 (MANUAL)

POWER (CAR) THE MAIN TECHNICAL PARAMETERS: THE CURRENT MODELS: SDQ51/74 PS, CONTROL MODE: MANUAL, OUTPUT SHAFT ROTATE TO: RELATED TO THE ENGINE CYCLE, ON THE OTHER HAND, THE POWER  PTO GEARBOX  TOTAL RATIO: 1.63, APPLICABLE MODELS: NKR55E2 NKR55L, OUTPUT TORQUE (N.M) : 250, WITH THE GEARBOX: THE MSB - 5 S MSB - 5 M

PTO GEARBOX SDQ51-65 NO. : SDQ51-65

POWER (CAR) THE MAIN TECHNICAL PARAMETERS: THE CURRENT MODELS: SDQ51/65 PS, CONTROL MODE: MANUAL, OUTPUT SHAFT ROTATE TO: RELATED TO THE ENGINE CYCLE, ON THE OTHER HAND, THE POWER  PTO GEARBOX  TOTAL RATIO: 1.26, APPLICABLE MODELS: JIANGLING N800, OUTPUT TORQUE (N.M) : 350, WITH THE GEARBOX: 6 MTI420

PTO GEARBOX SDQ51-62 NO. : SDQ51-62

POWER (CAR) THE MAIN TECHNICAL PARAMETERS: THE CURRENT MODELS: SDQ51/62 PS, CONTROL MODE: MANUAL, OUTPUT SHAFT ROTATE TO: RELATED TO THE ENGINE CYCLE, ON THE OTHER HAND, THE POWER  PTO GEARBOX  TOTAL RATIO: 1.5, APPLICABLE MODELS: NKR55E, NKR54, OUTPUT TORQUE (N.M) : 250, WITH THE GEARBOX: THE MSB - 5 M LCT88

PTO GEARBOX SDQ50-71 NO. : SDQ50-71

POWER (CAR) THE MAIN TECHNICAL PARAMETERS: THE CURRENT MODELS: SDQ50/71 PQ1, CONTROL MODE: MANUAL, PNEUMATIC, OUTPUT SHAFT ROTATE TO: RELATED TO THE ENGINE CYCLE, ON THE OTHER HAND, THE POWER  PTO GEARBOX  TOTAL RATIO: 1.17, APPLICABLE MODELS: HFC1048, HFC1046, OUTPUT TORQUE (N.M) : 250, WITH THE GEARBOX: LC5T97 LC5T30

PTO GEARBOX SDQ50-45 NO. : SDQ50-45

POWER (CAR) THE MAIN TECHNICAL PARAMETERS: THE CURRENT MODELS: SDQ50/45 PQ1, MANIPULATION METHODS: PNEUMATIC, OUTPUT SHAFT ROTATE TO: RELATED TO THE ENGINE CYCLE, ON THE OTHER HAND, THE POWER  PTO GEARBOX  TOTAL RATIO: 1.1, APPLICABLE MODELS: FC1048K1, EQ1141G7D12, OUTPUT TORQUE (N.M) : 280, WITH THE GEARBOX: LC6T46 (A2Q25) WLYZ6S46 (REVERSE GEAR)

PTO GEARBOX SDQ42-16 (BIAXIAL) NO. : SDQ42-16 (BIAXIAL)

POWER (CAR) THE MAIN TECHNICAL PARAMETERS: THE CURRENT MODELS: SDQ42/16 LGS - 1, MANIPULATION METHODS: PNEUMATIC, OUTPUT SHAFT ROTATE TO: RELATED TO THE ENGINE CYCLE, ON THE OTHER HAND, THE POWER  PTO GEARBOX  TOTAL RATIO: 1.2, APPLICABLE MODELS: EVKA3010 EVKA4010, OUTPUT TORQUE (N.M) : 200, WITH THE GEARBOX: 2826.5 2826.5

PTO GEARBOX SDQ34-39 NO. : SDQ34-39

POWER (CAR) THE MAIN TECHNICAL PARAMETERS: THE CURRENT MODELS: SDQ34/39, CONTROL MODE: MANUAL, PNEUMATIC, OUTPUT SHAFT ROTATE TO: RELATED TO THE ENGINE CYCLE, ON THE OTHER HAND, THE POWER  PTO GEARBOX  TOTAL RATIO: 1.192, APPLICABLE MODELS: BJ1041, OUTPUT TORQUE (N.M) : 170, WITH THE GEARBOX: CAS5-20 B16

PTO GEARBOX SDQ34-32 NO. : SDQ34-32

POWER (CAR) THE MAIN TECHNICAL PARAMETERS: THE CURRENT MODELS: SDQ34/32 PQ1, CONTROL MODE: MANUAL, PNEUMATIC, OUTPUT SHAFT ROTATE TO: RELATED TO THE ENGINE CYCLE, ON THE OTHER HAND, THE POWER  PTO GEARBOX  TOTAL RATIO: 1.192, APPLICABLE MODELS: BJ1041 CA1041, OUTPUT TORQUE (N.M) : 250, WITH THE GEARBOX: CAS5-20 B10

PTO GEARBOX SDQ33-39 NO. : SDQ33-39

POWER (CAR) THE MAIN TECHNICAL PARAMETERS: THE CURRENT MODELS: SDQ33/39, CONTROL MODE: MANUAL, OUTPUT SHAFT ROTATE TO: RELATED TO THE ENGINE CYCLE, ON THE OTHER HAND, THE POWER  PTO GEARBOX  TOTAL RATIO: 1.5, APPLICABLE MODELS: BJ1041 CA1041, OUTPUT TORQUE (N.M) : 170, WITH THE GEARBOX: CAS5-20 B16

PTO GEARBOX SDQ33-32 -A NO. : SDQ33-32 -A

POWER (CAR) THE MAIN TECHNICAL PARAMETERS: THE CURRENT MODELS: SDQ33/32 - A, CONTROL MODE: MANUAL, OUTPUT SHAFT ROTATE TO: RELATED TO THE ENGINE CYCLE, ON THE OTHER HAND, THE POWER  PTO GEARBOX  TOTAL RATIO: 1.5, APPLICABLE MODELS: BJ1041A, OUTPUT TORQUE (N.M) : 170, WITH THE GEARBOX: LG520Q3 LG525Q (POSITION)

PTO GEARBOX SDQ33-32 NO. : SDQ33-32

POWER (CAR) THE MAIN TECHNICAL PARAMETERS: THE CURRENT MODELS: SDQ33/32 PS, MANIPULATION METHODS: PNEUMATIC, OUTPUT SHAFT ROTATE TO: RELATED TO THE ENGINE CYCLE, ON THE OTHER HAND, THE POWER  PTO GEARBOX  TOTAL RATIO: 1.24, APPLICABLE MODELS: BJ1041, OUTPUT TORQUE (N.M) : 250, WITH THE GEARBOX: CAS5-20 B10 CAS525C3 LG520EQ GLD5-20 E4

PTO GEARBOX SDQ28-72 NO. : SDQ28-72

POWER (CAR) THE MAIN TECHNICAL PARAMETERS: THE CURRENT MODELS: SDQ28/72 PQ1, MANIPULATION METHODS: PNEUMATIC, OUTPUT SHAFT ROTATE TO: RELATED TO THE ENGINE CYCLE, ON THE OTHER HAND, THE POWER  PTO GEARBOX  TOTAL RATIO: 1.84, APPLICABLE MODELS: EQ5173, OUTPUT TORQUE (N.M) : 450, WITH THE GEARBOX: DC7J120TC (DIRECTLY)

PTO GEARBOX SDQ28-65 NO. : SDQ28-65

POWER (CAR) THE MAIN TECHNICAL PARAMETERS: THE CURRENT MODELS: SDQ28/65, MANIPULATION METHODS: PNEUMATIC, OUTPUT SHAFT ROTATE TO: RELATED TO THE ENGINE CYCLE, ON THE OTHER HAND, THE POWER  PTO GEARBOX  TOTAL RATIO: 1.55, APPLICABLE MODELS: CA5173, OUTPUT TORQUE (N.M) : 350, WITH THE GEARBOX: DC7J120TB (SPEED)

PTO GEARBOX SDQ28-55 NO. : SDQ28-55

POWER (CAR) THE MAIN TECHNICAL PARAMETERS: THE CURRENT MODELS: SDQ28/55 PQ1, MANIPULATION METHODS: PNEUMATIC, OUTPUT SHAFT ROTATE TO: RELATED TO THE ENGINE CYCLE, ON THE OTHER HAND, THE POWER  PTO GEARBOX  TOTAL RATIO: 1.03, APPLICABLE MODELS: EQ4146G (HEAVEN FORBID!) JIN, OUTPUT TORQUE (N.M) : 400, WITH THE GEARBOX: 17 G0A3 17 G0A3 17 N29-00030-38 - B62D 17 G0A3 N29-1700010 - N9001

PTO GEARBOX SDQ28-53 NO. : SDQ28-53

POWER (CAR) THE MAIN TECHNICAL PARAMETERS: THE CURRENT MODELS: SDQ28/53, MANIPULATION METHODS: PNEUMATIC, OUTPUT SHAFT ROTATE TO: RELATED TO THE ENGINE CYCLE, ON THE OTHER HAND, THE POWER  PTO GEARBOX  TOTAL RATIO: 1.20, APPLICABLE MODELS: EQ4146G, OUTPUT TORQUE (N.M) : 320, WITH THE GEARBOX: DF6S900 17 G0A3-41

PTO GEARBOX SDQ27-66 NO. : SDQ27-66

POWER (CAR) THE MAIN TECHNICAL PARAMETERS: THE CURRENT MODELS: SDQ27 / PQ1 66 - G, MANIPULATION METHODS: PNEUMATIC, OUTPUT SHAFT ROTATE TO: RELATED TO THE ENGINE CYCLE, ON THE OTHER HAND, THE POWER  PTO GEARBOX  TOTAL RATIO: 1.26, APPLICABLE MODELS: EQ1208, OUTPUT TORQUE (N.M) : 450, WITH THE GEARBOX: DC6J85TZ (OVERDRIVE) 17 G0A3-1700010-54 N9000

PTO GEARBOX SDQ27-65 NO. : SDQ27-65

POWER (CAR) THE MAIN TECHNICAL PARAMETERS: THE CURRENT MODELS: SDQ27/65 PQ1, MANIPULATION METHODS: PNEUMATIC, OUTPUT SHAFT ROTATE TO: RELATED TO THE ENGINE CYCLE, ON THE OTHER HAND, THE POWER  PTO GEARBOX  TOTAL RATIO: 1.07, APPLICABLE MODELS: EQ11230, OUTPUT TORQUE (N.M) : 350, WITH THE GEARBOX: 17 G09 - Z66D DC7J100TC



PTO GEARBOX SDQ27-55 NO. : SDQ27-55

POWER (CAR) THE MAIN TECHNICAL PARAMETERS: THE CURRENT MODELS: SDQ27/55 PQ1, MANIPULATION METHODS: PNEUMATIC, OUTPUT SHAFT ROTATE TO: RELATED TO THE ENGINE CYCLE, ON THE OTHER HAND, THE POWER  PTO GEARBOX  TOTAL RATIO: 1.216, APPLICABLE MODELS: EQ1208, OUTPUT TORQUE (N.M) : 17 G0A3-400, WITH THE GEARBOX: (32/33/34/35/36) DC6J85TZ (DIRECTLY)

PTO GEARBOX SDQ27-53 NO. : SDQ27-53

POWER (CAR) THE MAIN TECHNICAL PARAMETERS: THE CURRENT MODELS: SDQ27/53, MANIPULATION METHODS: PNEUMATIC, OUTPUT SHAFT ROTATE TO: RELATED TO THE ENGINE CYCLE, ON THE OTHER HAND, THE POWER  PTO GEARBOX  TOTAL RATIO: 1.36, APPLICABLE MODELS: EQ11230 (SEVEN SPEED GEAR BOX), THE OUTPUT TORQUE (N.M) : 350, WITH THE GEARBOX: 17 GOA9 - Z67D DC7J100TB

PTO GEARBOX SDQ27-23 NO. : SDQ27-23

POWER (CAR) THE MAIN TECHNICAL PARAMETERS: THE CURRENT MODELS: SDQ27/23, MANIPULATION METHODS: PNEUMATIC, OUTPUT SHAFT ROTATE TO: RELATED TO THE ENGINE CYCLE, ON THE OTHER HAND, THE POWER  PTO GEARBOX  TOTAL RATIO: 1.58, APPLICABLE MODELS: EQ1230 (6), THE OUTPUT TORQUE (N.M) : 350, WITH THE GEARBOX: 17 Z66-00030

PTO GEARBOX SDQ26-33 NO. : SDQ26-33

POWER (CAR) THE MAIN TECHNICAL PARAMETERS: THE CURRENT MODELS: SDQ26/33, MANIPULATION METHODS: PNEUMATIC, OUTPUT SHAFT ROTATE TO: RELATED TO THE ENGINE CYCLE, ON THE OTHER HAND, THE POWER  PTO GEARBOX  TOTAL RATIO: 1.40, APPLICABLE MODELS: EQ1206G, OUTPUT TORQUE (N.M) : 350, WITH THE GEARBOX: 17 TO 26 GOA3.. 27.28.29.30.31
